Colourful Fluid Dynamics

[ChaosKnight]

Thankies for yr help chaos~~. My cousin said she will buy u lunch when she complete her phd. 4 yrs later. Hahahaaaa~~

Apologies if i am not of much help. i don't know any biology. Also i am a poly dropout, so can't help much on the mechanical aspects either.

[ChaosKnight]

Velocity contours.

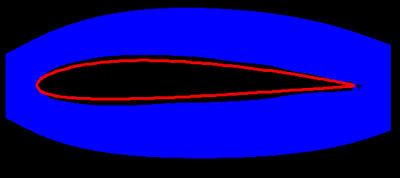

The blue are dense streamtrace plots around the airfoil. The stream traces follow the airfoil surface quite closely. If we get a good stream function solution we can get the velocity field and hence pressure coefficients.

This is basically a misuse of the code. It is not good for high reynolds. Need a finer grid to capture the boundary layers.
